Home Assistant 支持通过 MQTT 协议与设备通信；

使用 C# 和 .NET 可以开发 Home Assistant 集成，但需要结合 MQTT 协议或第三方库实现。

.NET 可以通过 MQTT 库（MQTTnet）实现设备控制与状态上报。

例如：

自动发现设备：按照 MQTT 发现消息格式发布配置信息（如 [homeassistant/button/pc/mac/config](@ref)），Home Assistant 会自动识别设备1
。
状态控制：通过发布消息到 command_topic 控制设备，订阅 availability_topic 更新设备状态

我们已经成功在 Home Assistant 平台添加了 MQTT 服务器。通过 MQTT Client，自己开发的设备或者传感器都能很方便的接入 Home Assistant

我们将介绍如何在.NET 中使用MQTTnet来创建一个简单的MQTT发布和订阅示例。这个示例包括一个树莓派上运行的MQTT服务端（home assistant）和一个MQTT客户端。

hass关于Discovery格式原文地址:https://www.home-assistant.io/integrations/mqtt/#mqtt-discovery

Discovery topic

<discovery_prefix>/<component>/[<node_id>/]<object_id>/config

本次选用的类库为c# MQTTnet

MQTTnet的源码托管在GitHub上，地址为：https://github.com/dotnet/MQTTnet

https://github.com/dotnet/MQTTnet

C#的MQTT系列

MQTT（一）C#使用 MQTTnet 快速实现 MQTT 通信

MQTT（二）在windows64位上安装Python环境

MQTT（三）Python客户端+net客户端+net服务端简单通信

MQTT（四）树莓派开机自动运行Python客户端

MQTT（五）实现开源MQTT消息服务器

可以通过MQTT协议实现设备之间的通信，包括设备的发现、状态更新等功能。

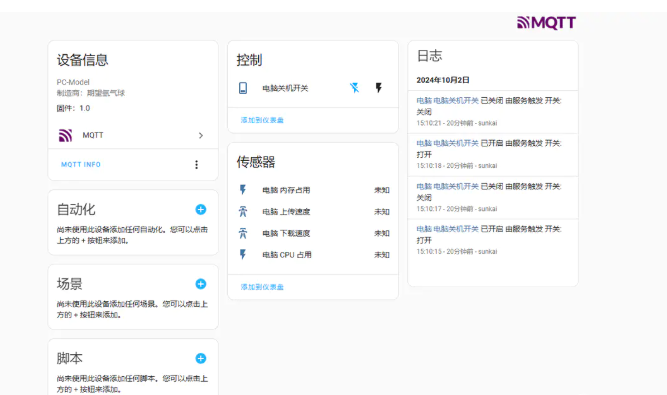

使用.NET为Home Assistant添加自定义设备，实现电脑远程关机的功能

利用 MQTT auto discovery 特点来自动创建实体

step 1.客户端-新建一个控制台项目
step 2.添加Nuget包：安装MQTTnet

使用MQTTnet

官网项目网址：https://github.com/chkr1011/MQTTnet

首先我们需要在 .NET 中实现 MQTT 客户端

一种是更新ha中已有的实体；

一种是用自动发现直接在ha中创建实体

项目准备

首先，我们需要创建1个.NET 控制台项目，用作客户端。这个项目将实现MQTT消息发布和订阅功能。

然后，我们需要安装MQTTnet包。在本示例中，我们选择安装MQTTnet。

step 1.客户端-新建一个控制台项目

step 2.添加Nuget包：安装MQTTnet

<ItemGroup>
  <PackageReference Include="MQTTnet" Version="5.0.1.1416" />
</ItemGroup>

设备需要通过 MQTT 发送一条配置消息,HA会自动识别：
温度传感器配置消息：
发布到主题：homeassistant/sensor/temp_sensor/config

{

  "name": "Temperature Sensor",
  "device_class": "temperature",
  "state_topic": "homeassistant/all/esp8266/state",
  "unit_of_measurement": "°C",
  "value_template": "{
   { value_json.temperature }}",
  "unique_id": "temp_sensor",
  "device": {

    "identifiers": ["esp8266_sensor"],
    "name": "ESP8266 Sensor",
    "manufacturer": "Espressif",
    "model": "ESP8266EX",
    "sw_version": "1.0.0"
  }
}

// CPU占用

homeassistant/sensor/computer/cpu/config

{

  "unique_id": "computer_cpu_usage",

  "name": "电脑 CPU 占用",

  "state_topic": "home/computer/status/cpu",

  "unit_of_measurement": "%",

  "device_class": "power",

  "value_template": "{{ value }}",

  "device": {

    "identifiers": ["computer_unique_identifier"],

    "name": "电脑",

    "manufacturer": "期望氢气球",

    "model": "PC-Model",

    "sw_version": "1.0"

  }

}

// 内存占用

homeassistant/sensor/computer/memory/config

{

  "unique_id": "computer_memory_usage",

  "name": "电脑 内存占用",

  "state_topic": "home/computer/status/memory",

  "unit_of_measurement": "%",

  "device_class": "power",

  "value_template": "{{ value }}",

  "device": {

    "identifiers": ["computer_unique_identifier"],

    "name": "电脑",

    "manufacturer": "期望氢气球",

    "model": "PC-Model",

    "sw_version": "1.0"

  }

}

// 上传速度

homeassistant/sensor/computer/upload_speed/config

{

  "unique_id": "computer_upload_speed",

  "name": "电脑 上传速度",

  "state_topic": "home/computer/status/upload_speed",

  "unit_of_measurement": "bytes/s",

  "device_class": "data_rate",

  "value_template": "{{ value }}",

  "device": {

    "identifiers": ["computer_unique_identifier"],

    "name": "电脑",

    "manufacturer": "期望氢气球",

    "model": "PC-Model",

    "sw_version": "1.0"

  }

}

// 下载速度

homeassistant/sensor/computer/download_speed/config

{

  "unique_id": "computer_download_speed",

  "name": "电脑 下载速度",

  "state_topic": "home/computer/status/download_speed",

  "unit_of_measurement": "bytes/s",

  "device_class": "data_rate",

  "value_template": "{{ value }}",

  "device": {

    "identifiers": ["computer_unique_identifier"],

    "name": "电脑",

    "manufacturer": "期望氢气球",

    "model": "PC-Model",

    "sw_version": "1.0"

  }

}

// 开关配置

homeassistant/switch/computer/shutdown/config

{

  "unique_id": "computer_shutdown_switch",

  "name": "电脑关机开关",

  "command_topic": "home/computer/command/shutdown",

  "payload_on": "ON",

  "payload_off": "OFF",

  "device": {

    "identifiers": ["computer_unique_identifier"],

    "name": "电脑",

    "manufacturer": "期望氢气球",

    "model": "PC-Model",

    "sw_version": "1.0"

  }

}

// 开关配置

homeassistant/switch/computer/shutdown/config

{

  "unique_id": "computer_shutdown_switch",

  "name": "电脑关机开关",

  "command_topic": "home/computer/command/shutdown",

  "payload_on": "ON",

  "payload_off": "OFF",

  "device": {

    "identifiers": ["computer_unique_identifier"],

    "name": "电脑",

    "manufacturer": "期望氢气球",

    "model": "PC-Model",

    "sw_version": "1.0"

  }

}

local disk: F:\developer_mqtt_client\mqtt_client

remote github:https://github.com/iaspnetcore/mqtt_client.git

blog：https://www.iaspnetcore.com/Blog/BlogPost/67647cc2709e6b8b87a4d742/c-implementing-mqtt-communication-protocol-open-source-library-mqttnet
